| 產品型號 | 指標參數 | 備注 | ||

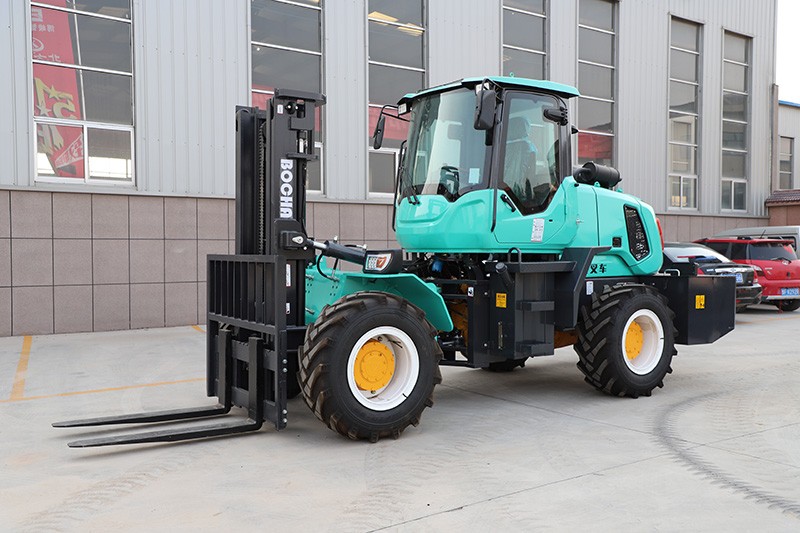

| CPDY70越野叉車 | 型號model | 單位unit | CPDY70 |
高精度門架、 國內一線品牌油缸進口油封 、國內品牌軸承、 品牌高壓輪胎質保3年、 加強型前車架。 |
| 動力類型Power type | ||||
| 額定負荷Rated load | Kg | 7000 | ||
| 載荷中心距Load center distance | mm | 500 | ||
| 尺寸 | ||||
| 貨叉起升最大高度(帶擋貨架)Maximum lifting height of fork (shelf with stopper) | mm | 4260 | ||
| 最大提升高度Maximum lifting height | mm | 3000 | ||
| 門架全高(貨叉落地,門架垂直)Full height of gantry (fork landing.gantry vertical) | mm | 2530 | ||
| 自由提升高度Free lifting height | mm | 150 | ||
| 擋貨架高度(門架貨叉面算起)Height of blocking rack (calculated from the fork surface of gantry) | mm | 1196 | ||
| 座椅面至護頂架距離Distance from seat surface to roof protection frame | mm | 870 | ||
| 全高(護頂架)Full height (roof protection frame) | mm | 2810 | ||
| 全長(不帶貨叉)Ful length(without fork) | mm | 5030 | ||
| 前懸距Front overhang distance | mm | 684 | ||
| 后懸距Rear overhang | mm | 1520 | ||
| 軸距wheelbase | mm | 2628 | ||
| 牽引銷高度Towing pin height | mm | 820 | ||
| 最小離地間隙(門架處)Minimum ground clearance (at gantry) | mm | 356 | ||
| 全寬Full width | mm | 2190 | ||
| 叉距外側(最大/最小)Fork pitch outside(max/min) | mm | 1350/300 | ||
| 輪距(前輪/后輪)Track width(front/rear) | mm | 1700/1700 | ||
| 最小轉彎半徑外側Outside of minimum turning radius | mm | 5800 | ||
| 最小轉彎半徑內側Inside of minimum turning radius | mm | 3900 | ||
| 最小直角半徑寬度Minimum right angle radius width | mm | 5900 | ||
| 門架傾角(前/后)Gantry inclination (front/rear) | mm | 前8后10 | ||
| 貨叉尺寸Fork size | mm | 1070*50*150 | ||
| 性能 | ||||
| 最高行駛速度(滿載/空載)Maximum driving speed(full load/no load) | Km/h | 30/35 | ||
| 速度提升(滿載/空載)Speed increase(full load/no load) | mm/s | 350/500 | ||
| 速度下降(滿載/空載)Speed decrease(full load/no load) | mm/s | 550/450 | ||
| 最大牽引力(滿載/空載)Maximum traction (full load/no load) | KN | 65 | ||
| 最大爬坡能力(滿載/空載)Maximum climbing capacity (full load/no load) | % | 20/30 | ||
| 質量 | ||||
| 總重Total weight | Kg | 6800 | ||
| 重量分配滿載(前/后)Weight distribution full load(front/rear) | Kg | 12150/950 | ||
| 重量分配空載(前/后)Weight distribution empty(front/rear) | Kg | 2250/3850 | ||
| 車輪和輪胎 | ||||
| 車輪數量X/驅動輪Number of wheels x/drive wheel | 4X/4 | |||
| 輪胎類型(前/后)Tire type(front/rear) | 充氣胎 | |||
| 前輪輪胎Front tire | 16/70-20 | |||
| 后輪輪胎Rear tire | 16/70-20 | |||
| 行車制動器Service brake | 液壓制動 | |||
| 停車制動器Parking brake | 機械 | |||
| 驅動、傳動控制裝置 | ||||
| 發動機型號Engine model | YCD4T33T6-115 | |||
| 減速箱型號Reducer model | 280 | |||
| 發動機功率Engine power | KW | 90KW | ||
| 發動機扭矩/轉速Engine torque/speed | N.M | 415/1800 | ||
| 變速箱變檔數Number of transmission shifts | 前3后3 | |||
整車五年質保
廠家直銷，用電系統質保
解決后顧之憂
整車系統配備遠程診斷和調控
整車標準配置
意大利博索尼叉步齒
售后服務保障體系
專業團隊，7X24無憂售后服務15854508777 13791193513
